How a bacterial protein selectively binds antibody Fc regions, removing >95% of impurities while concentrating the product 10‑ to 100‑fold.

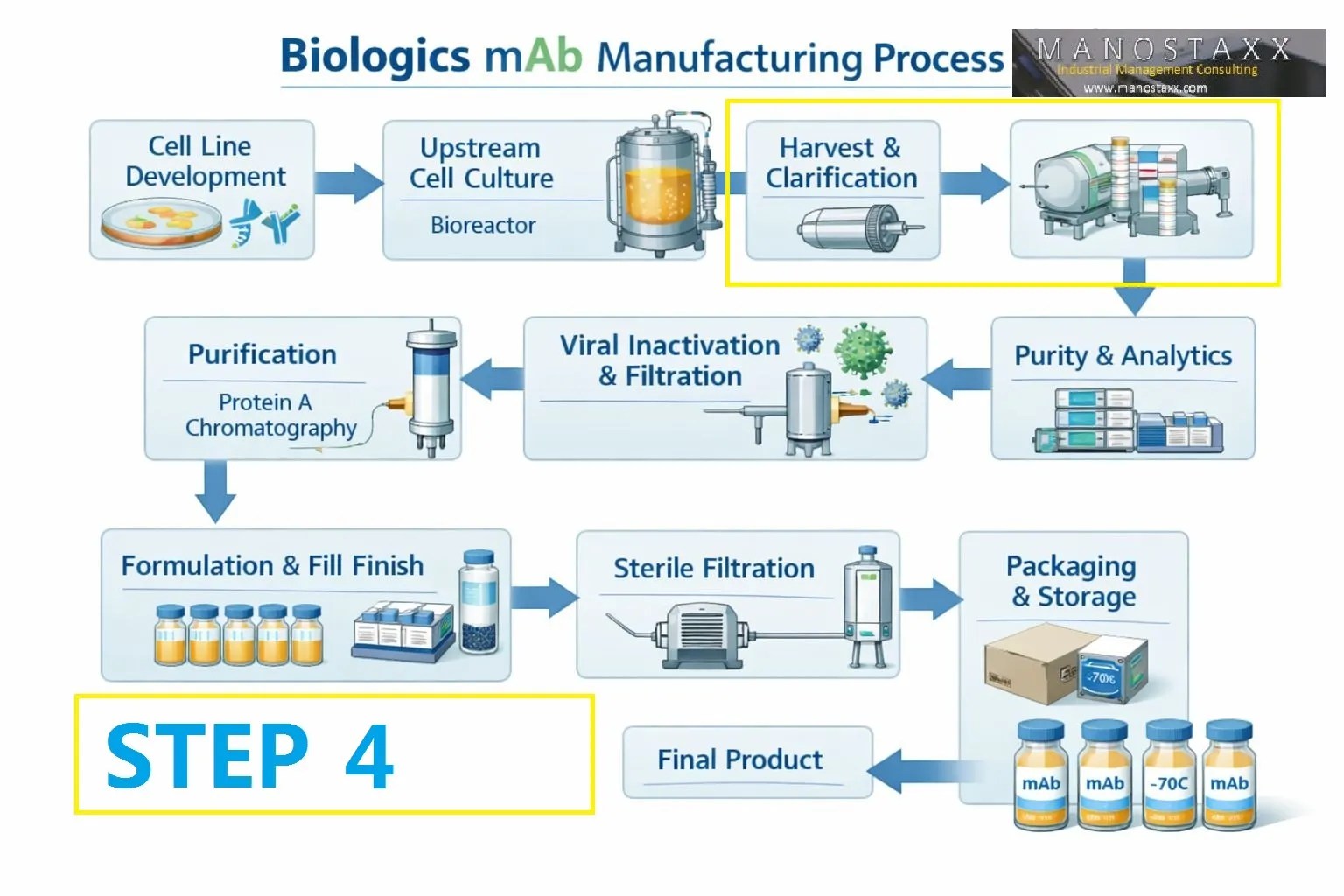

Welcome back to our deep‑dive series on monoclonal antibody manufacturing. In Step 4, we clarified the harvested cell culture fluid (HCCF), removing cells and large debris. The resulting Clarified Bulk Harvest is still a dilute soup containing our mAb (0.5–5 g/L) alongside thousands of host cell proteins (HCPs), DNA, media components, and potential viral particles.
Now we deploy the most powerful single step in the entire downstream process: Protein A Affinity Chromatography. This step is so effective that it alone removes >95% of impurities and concentrates the antibody 10‑ to 100‑fold, delivering a product that is already >98% pure.
Let’s break down the science, the step‑by‑step operation, the equipment, and the common pitfalls.
Overview: What Is Protein A Chromatography?
Protein A is a 42 kDa protein originally isolated from the cell wall of Staphylococcus aureus. It binds specifically to the Fc region of human IgG subclasses (IgG1, IgG2, IgG4) and most monoclonal antibodies of these isotypes.
In a chromatography setting, Protein A is covalently immobilized onto a porous agarose or synthetic polymer resin bead (typically 50–100 µm diameter). When we pass the clarified harvest through a column packed with this resin, the mAb binds to the Protein A ligand while impurities flow through. After washing, we elute the mAb by lowering the pH, which disrupts the Fc‑Protein A interaction.
Why is this step so powerful?
High selectivity: Binds only IgG (and some Fc‑fusion proteins).
High capacity: Modern resins bind 30–60 g mAb per liter of resin.
High purity: Single step removes 95–99% of HCPs, DNA, and viruses.
Step 5.1: Column Packing and Qualification
Before any purification run, the Protein A column must be packed and qualified.
Process:
Select the resin: Common choices include:
MabSelect SuRe (Cytiva) – alkali‑stable, allows harsh cleaning (0.1–0.5 M NaOH)
Amsphere A3 (JSR) – high capacity, low cost
Eshmuno A (Merck) – high flow rates
Praesto Jetted A50 (Purolite) – rigid, high throughput
Pack the column: Slurry the resin in 20% ethanol, pour into a chromatography column (e.g., Cytiva Axichrom, Repligen OPUS pre‑packed), and compress to the target bed height (typically 15–25 cm). Packing is done by flow packing or dynamic compression.
Qualify the pack: Perform an HETP (height equivalent to a theoretical plate) and Asymmetry test using a non‑binding tracer (e.g., 1% acetone in water). Acceptable criteria:
HETP < 2× resin bead diameter
Asymmetry factor 0.8–1.8
Sanitize: Sanitize the column with 0.5 M NaOH (contact time 30–60 minutes), then store in 0.1 M NaOH or 20% ethanol.
Equipment:
Chromatography skid (e.g., Cytiva ÄKTAprocess, Bio‑Rad NGC, Repligen KrosFlo) with pumps, UV, pH, conductivity monitors
Packing station or column packer (e.g., Cytiva LabScale, Millipore Chromaflow)
Column hardware (stainless steel or glass, e.g., Cytiva Axichrom, BPG, or single‑use OPUS columns)
Step 5.2: The Chromatography Cycle – Step by Step
A typical Protein A capture run follows a five‑step cycle. The total cycle time (excluding CIP) is usually 2–4 hours for a commercial‑scale column.
Step 5.2.1: Equilibration
Purpose: Prepare the column with the same buffer conditions as the load (pH, conductivity) to ensure optimal binding.
Buffer: 20–50 mM Tris, 100–150 mM NaCl, pH 7.0–7.5 (or phosphate‑buffered saline, PBS)
Volume: 3–5 column volumes (CV)
Flow rate: 100–300 cm/h (linear flow rate; corresponds to ~1–5 L/min for a 1 m diameter column)
Step 5.2.2: Load (Capture)
Purpose: Bind the mAb from the clarified harvest onto the Protein A resin.
Load volume: 10–30 CV (depending on titer and resin capacity). For a 10,000 L harvest at 2 g/L mAb, you need ~400 L of resin (assuming 50 g/L capacity).
Load density: Typically 80–90% of the resin’s dynamic binding capacity (DBC) at 10% breakthrough. For MabSelect SuRe, DBC at 2‑minute residence time is ~40–50 g/L.
Key parameter: Residence time (column volume divided by flow rate). Typical: 2–6 minutes. Longer residence increases binding but reduces throughput.
Monitoring: UV (A280) – the breakthrough signal rises when resin approaches saturation. Stop load when UV reaches 10–20% of feed absorbance.
Step 5.2.3: Wash 1 (Post‑Load Wash)
Purpose: Remove loosely bound HCPs, DNA, and media components that are not specifically bound.
Buffer: Same as equilibration buffer (or slightly higher salt/alternative additives)
Volume: 3–5 CV
Optional intermediate wash: Some processes use a high‑salt wash (e.g., 1 M NaCl) or a mixed‑mode wash (e.g., 0.5–1% Triton X‑100 or polysorbate 20) to remove more impurities, especially endotoxin and viruses.
Step 5.2.4: Elution
Purpose: Release the mAb from the Protein A ligand by disrupting the Fc‑Protein A interaction using low pH.
Buffer: 50–100 mM sodium citrate, pH 3.2–3.6 (or 50 mM acetic acid, pH 3.0–3.5)
Mechanism: Low pH protonates histidine and other residues in the Fc binding interface, breaking hydrogen bonds and hydrophobic interactions.
Elution strategy:
Step elution: Single pH (e.g., pH 3.5). Simple, but may co‑elute some HCPs.
Gradient elution: Gradual pH decrease from 7.0 to 3.0. Sharper peak, potentially purer.
Volume: 3–5 CV (typically collected as a single peak of 1–2 CV)
Collection: The eluate is collected in a vessel containing a neutralization buffer (e.g., 1 M Tris, pH 8.0–9.0) to immediately raise the pH to 5.0–6.0, preventing acid‑induced aggregation.
Monitoring: UV (A280) – the peak appears when pH drops. Fractions are collected based on UV threshold (e.g., start at 100 mAU, end at 100 mAU).
Step 5.2.5: Clean‑In‑Place (CIP)
Purpose: Remove tightly bound impurities (precipitated proteins, lipids, endotoxins) and sanitize the column between cycles or between batches.
CIP protocol (alkali‑stable resins like MabSelect SuRe):
0.5 M NaOH, contact time 15–30 minutes, flow rate 30–100 cm/h
Followed by WFI (water for injection) wash to pH < 8.0
Storage in 0.1 M NaOH or 20% ethanol (if not reusing immediately)
For non‑alkali‑stable resins: Use 0.1 M NaOH + 0.5 M NaCl, or 6 M guanidine HCl – but these are less effective and more costly.
Frequency: After every cycle (for commercial manufacturing) or at least daily.
Equipment:
Chromatography skid with alkali‑compatible wetted materials (e.g., titanium pump heads, PEEK or PTFE tubing)
In‑line pH and conductivity monitors
Fraction collector or automated diversion valve
UV flow cell (280 nm and optionally 260 nm for DNA detection)
Step 5.3: Post‑Elution Pool – What Comes Out of the Column
The eluate (often called the Protein A Pool or Low pH Eluate) has these characteristics:
| Parameter | Typical Value |
|---|---|
| mAb concentration | 5–50 g/L (10‑100× concentrated) |
| Purity (by SEC) | >95% monomer |
| HCP reduction | 100–10,000× (log‑2 to log‑4) |
| DNA reduction | 100–10,000× |
| Volume | 2–10% of load volume |
| pH (before neutralization) | 3.2–3.6 |
| pH (after neutralization) | 5.0–6.0 |
Hold conditions: The neutralized pool is held at 2–8°C for up to 24–48 hours before the next step (viral inactivation).
Step 5.4: Critical Process Parameters (CPPs) and Quality Attributes
| Parameter | Typical Range | Impact on Product |
|---|---|---|
| Residence time (load) | 2–6 min | Shorter time reduces binding capacity; longer increases aggregate formation |
| Load density (g/L resin) | 80–90% of DBC | Overloading causes product breakthrough and impurity carryover |
| Wash pH and salt | pH 7.0–7.5, 0.15–1 M NaCl | Higher salt removes more HCPs but may elute some mAb |
| Elution pH | 3.2–3.6 | Lower pH increases recovery but risks aggregation; higher pH leaves product on column |
| Elution flow rate | 50–200 cm/h | Faster elution gives sharper peak but may dilute product |
| CIP concentration (NaOH) | 0.1–0.5 M | Insufficient cleaning causes carryover; excessive weakens resin |
Step 5.5: Process Integration – Low pH Viral Inactivation
The Protein A eluate is already at low pH (3.2–3.6). This is the perfect time to perform low pH viral inactivation – a separate step that we will cover in detail in Step 6.
In many manufacturing sequences, the eluate is held at low pH for 30–60 minutes (with careful pH control) to inactivate enveloped viruses. Then it is neutralized and held. Some processes combine elution and inactivation by adjusting the elution pH and holding time.
What Can Go Wrong? (Troubleshooting Step 5)
| Problem | Possible Cause | Remedy |
|---|---|---|
| Low binding capacity (<< manufacturer spec) | Column fouled; incorrect buffer pH; load too high conductivity | Clean with 0.5 M NaOH; verify pH (7.0–7.5); dilute load or diafilter |
| mAb breakthrough during load | Resin overloaded; flow rate too high (low residence time) | Reduce load volume; decrease flow rate; increase resin volume |
| High HCP in eluate | Insufficient washing; load pH incorrect | Increase wash volume; add high‑salt or detergent wash; check load pH |
| Turbid eluate (precipitation) | Elution pH too low; mAb unstable at low pH; neutralization too slow | Increase elution pH to 3.6–3.8; pre‑place neutralization buffer; optimize mixing |
| Low recovery (<80%) | Elution pH too high; incomplete elution; mAb bound irreversibly | Lower elution pH (to 3.0); increase elution volume; check for column fouling |
| High column backpressure | Resin fouled or compressed; filters clogged | Clean with NaOH; re‑pack column; replace inlet frits |
| Ligand leaching (Protein A detected in eluate) | Hydrolysis or proteolysis; old resin | Replace resin (typical lifetime 50–200 cycles); use alkali‑stable resin (SuRe) |
Step 5.6: Resin Lifetime and Replacement
Protein A resin is expensive (typically $10,000–30,000 per liter). In commercial manufacturing, a single column may be reused for 50–200 cycles before replacement.
Factors limiting lifetime:
Ligand leaching (detectable in eluate by ELISA)
Loss of binding capacity (from 50 g/L to 30 g/L)
Increased backpressure (from fouling)
Carryover of impurities (color, HCPs)
Monitoring: Track capacity, pressure, and leached Protein A after each cycle. Establish an end‑of‑life criterion (e.g., replace when capacity drops below 70% of initial).
Emerging Alternatives and Intensifications
While Protein A is the gold standard, new technologies are emerging:
Mimetic ligands (small molecules or peptides that mimic Protein A binding) – cheaper but less specific.
Mixed‑mode chromatography (e.g., 4‑mercaptoethyl‑pyridine, MEP) – can replace Protein A in some processes, but still lower capacity.
Continuous capture (e.g., periodic counter‑current chromatography, PCC) – uses multiple smaller columns in sequence to increase resin utilization and reduce buffer consumption.
For a legacy product like Humira, Protein A remains irreplaceable.
What Comes Next?
The Protein A eluate, now concentrated and partially purified, is still at low pH. The next step capitalizes on this condition: Low pH Viral Inactivation – a regulatory‑mandated step that kills enveloped viruses before further polishing.

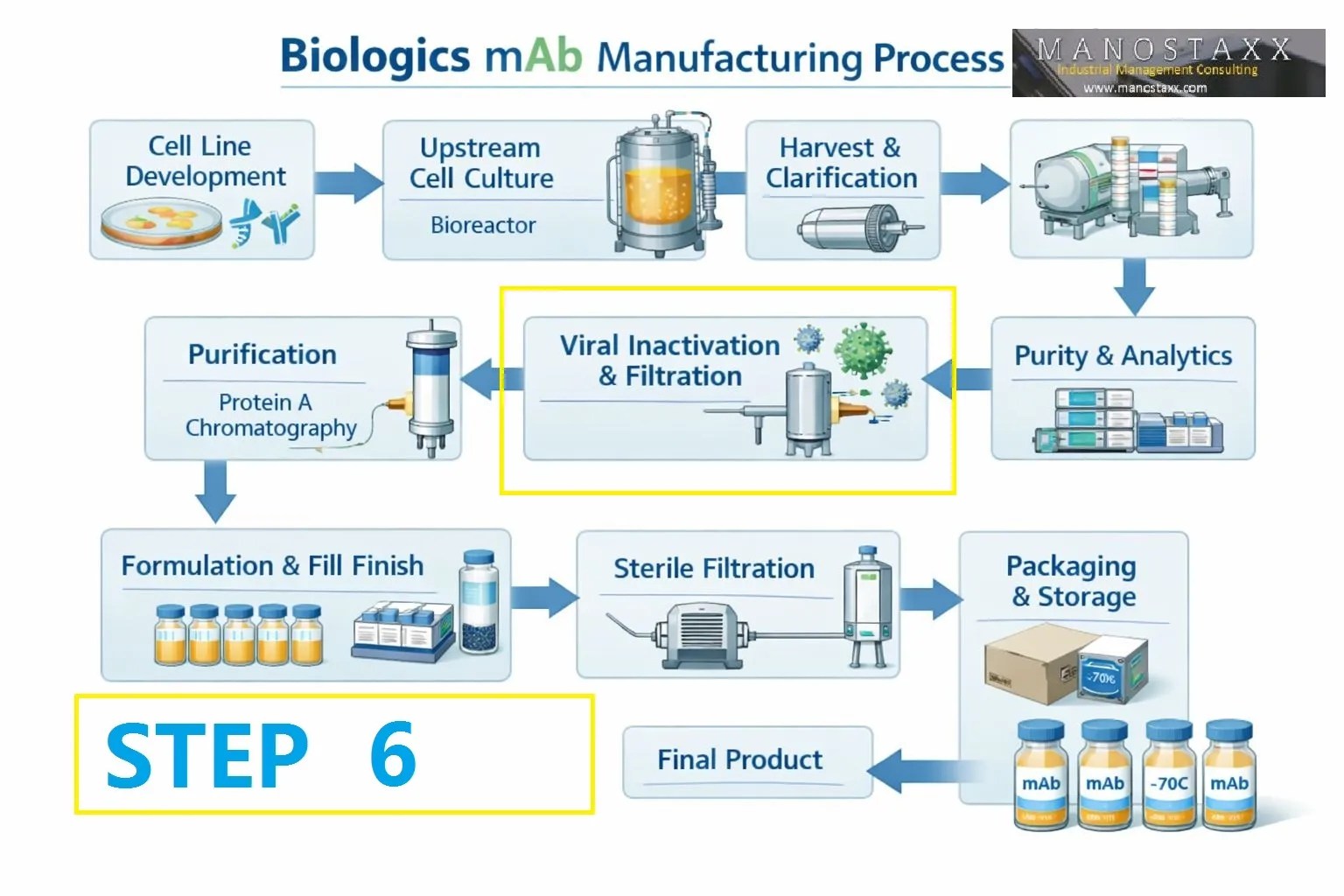

That will be Step 6: Low pH Viral Inactivation – covering the science, hold conditions, validation requirements, and pitfalls.
