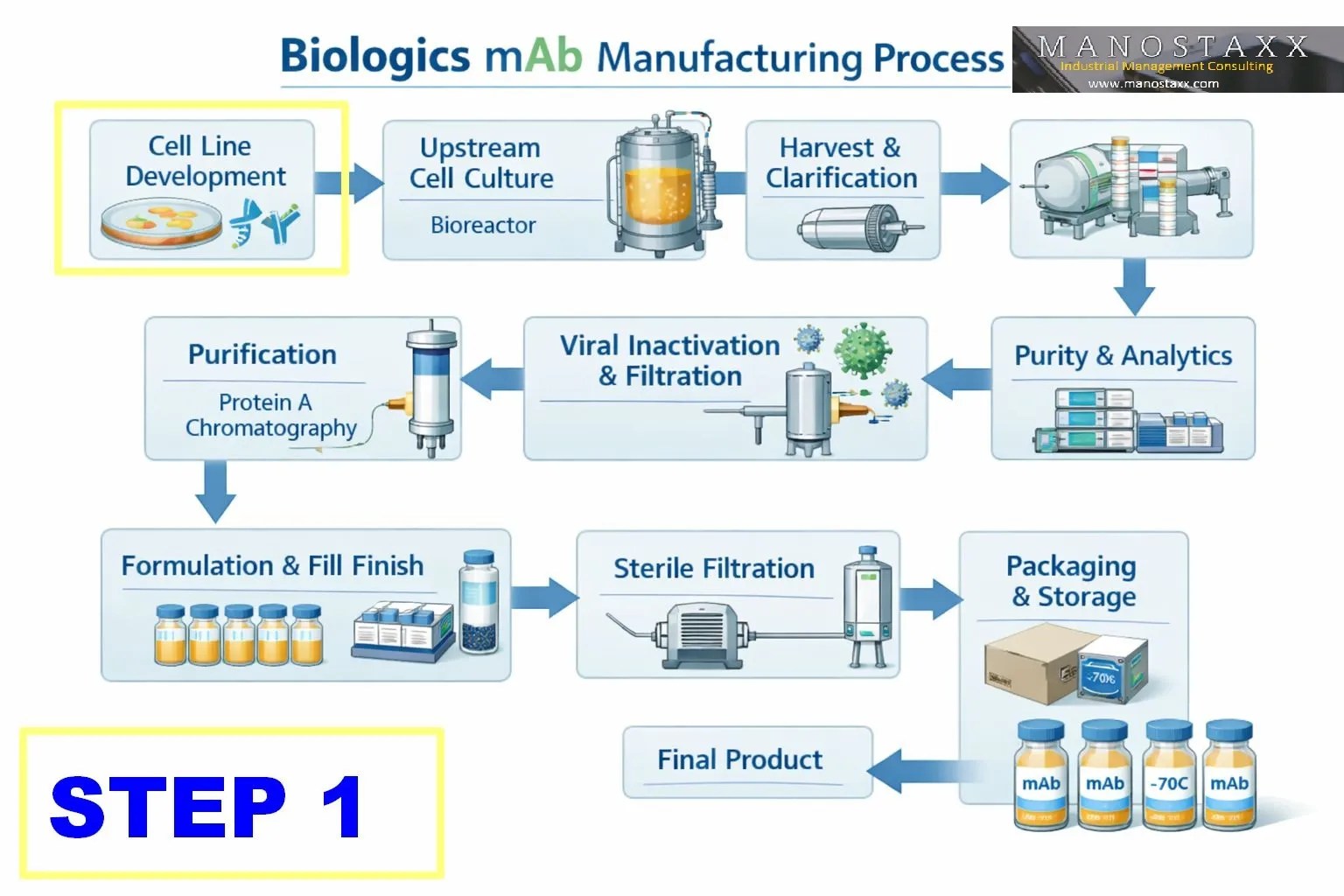

Welcome to the first technical installment of our deep-dive series into biologic pharmaceutical manufacturing. Over the coming months, we will dissect each unit operation—from bioreactor inoculation to final fill.
But before a single liter of culture touches a stainless steel tank, a critical decision is made that will determine the quality, yield, and regulatory fate of your monoclonal antibody for the next decade. That decision is Step 1: Cell Line Development and the creation of Master and Working Cell Banks.
If the production bioreactor is the factory, the cell line is the blueprint. And just like a blueprint, it must be perfect, stable, and infinitely reproducible.
Today, we walk through how we go from a gene sequence to a cryopreserved, regulatory-approved cell bank for a product like adalimumab (Humira).
1. Transfection: Putting the Antibody Gene into CHO Cells
We do not start with the antibody; we start with the DNA sequence that encodes the antibody.
The Vector: The heavy chain and light chain genes of the mAb are cloned into a plasmid expression vector. This vector also contains a selectable marker (e.g., DHFR or GS) – more on that in a moment.
The Host: The workhorse of the industry: Chinese Hamster Ovary (CHO) cells. Why CHO? They perform human-like glycosylation, grow well in suspension, and have a stellar safety record.
The Transfection: We introduce the plasmid into CHO cells using chemical (lipofection) or physical (electroporation) methods. Only a tiny fraction of cells will successfully integrate the gene into their genome.
2. Selection and Gene Amplification: Finding the Super-Producers
Simply having the gene is not enough. We need cells that overexpress it.
Selection Pressure: We grow the transfected cells in a medium lacking the nutrient that the selectable marker compensates for. For example, using the DHFR system, only cells that took up the dhfr gene (and thus our mAb gene) survive.
Amplification: To drive higher production, we gradually increase the concentration of methotrexate (MTX). Cells respond by multiplying the number of gene copies (gene amplification). This process can turn a cell making 1 pg/cell/day into one making 50+ pg/cell/day.
3. Single-Cell Cloning: The Mandatory Bottleneck
Here is the non-negotiable regulatory requirement (FDA/EMA): your final production cell line must be derived from a single, solitary cell.
Why? To ensure clonality – every cell in your final bank is genetically identical. If you start with a mixture of two different clones, one may overgrow or lose productivity over time, altering your product quality.
The Tools: Limiting dilution (statistically improbable to get a single cell), ClonePix (semi-solid media), or FACS (fluorescence-activated cell sorting) into 96-well plates.
The Evidence: You will need microscopic images (or rigorous statistical proof) showing that the well started with one cell and grew into a colony.
4. Clone Screening and Ranking (The Painstaking Phase)
From thousands of candidate clones, you must select one. The criteria are brutal:
Productivity (Titer): Which clone produces the highest mg/L in a fed-batch simulation?
Growth Kinetics: Does it reach high viable cell density without rapid death?
Stability: After 60-90 generations (simulating a full production campaign), does the clone still produce the same titer and the same quality antibody? This is where many clones fail.
Product Quality: Does the antibody have the correct aggregation profile, charge variants, and glycosylation pattern (G0, G1, G2)?
After 3-6 months of screening, you select your “King Clone.”
5. The Master Cell Bank (MCB): The Immutable Source
Once selected, the clone is expanded in a highly controlled, cleanroom environment. At a specific passage level (e.g., passage 10), you freeze down hundreds of cryovials (typically 1-2 mL each) in a controlled-rate freezer using a cryoprotectant (DMSO).
The MCB: This is your rock. You will never touch it again except to make a new Working Cell Bank. It is stored in vapor-phase liquid nitrogen (-150°C) in duplicate locations (geographic redundancy).
Characterization: The MCB must be extensively tested for:
Identity (e.g., PCR for the mAb gene)
Purity (sterility, mycoplasma, viruses – including in vitro and in vivo assays)
Genetic stability (sequencing after multiple passages)
6. The Working Cell Bank (WCB): The Daily Worker
Thawing a vial of the MCB is a risky event; you only do it to create a WCB.
The Process: One vial of MCB is thawed, expanded for a few generations, and then frozen down into another bank of hundreds of vials – the WCB.
The Role: Every single production campaign (every batch of Humira you make for the next 5-10 years) will start by thawing one vial of the WCB.
Why two banks? It protects the MCB from contamination or exhaustion. If a WCB is compromised, you simply make a new one from the MCB.
What Can Go Wrong? (Process Risks)
Even at Step 1, things can derail a program:
Genetic Drift: The clone loses the mAb gene over time. Your titer drops 50% after 6 months in the lab. Remedy: Extensive stability studies before MCB creation.
Clonality Dispute: Regulators question your evidence that the clone came from one cell. Remedy: Use two orthogonal methods (e.g., limiting dilution + imaging).
Viral Contamination of MCB: Catastrophic. The entire bank is discarded. Remedy: Raw material controls and viral testing before freezing.
Looking Ahead to Step 2
Once your MCB and WCB are certified and stored in the liquid nitrogen tanks, you are ready to start manufacturing. The next post in this series will cover Step 2: Inoculum Expansion and Seed Train – how we thaw one vial of WCB and grow it up to the billions of cells needed to inoculate a 20,000L production bioreactor.
